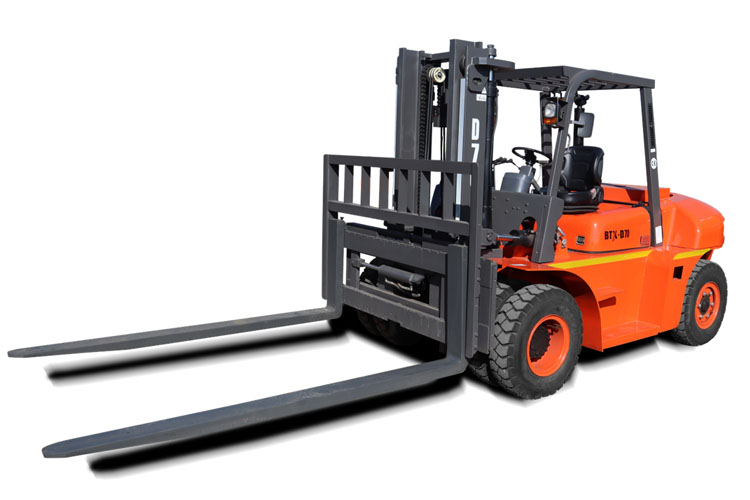

BTX-D70 (2 Stage)

R650,000.00

New type radiator improves cooling performance and truck reliability. Standard powered braking system offers quick-respond brake and effective brake; high capacity bag type accumulator with good performance improves truck reliability.

Categories: ,

Description

Applications:

As lifting and transporting machineries, 7 Ton double wheel Diesel Forklift Truck is widely used for loading and offloading and ushering the packaged goods in the construction site and factories and warehouses and stations and wharves and ports, etc. Similarly, with other attachments of forklift trucks, it can be used for the handling of the bulk goods and unpackaged goods.

Technical parameters

General
1
Model
CPCD70
2
Rated capacity
kg
7000
3
Load center
mm
600
4
Power type
Diesel
5
Transmission
Hydraulic
Dimensions
6
Lifting height
mm
3000
7
Free lifting height
mm
150
8
Turning radius
mm
3450
9
Overall length
mm
4850
10
Overall width
mm
1995
11
Overall height
(mast lowered)
mm
2500
12
Overall height
(mast raised)
mm
4420
13
Overall height
(overhead guard)
mm
2420
14
Fork length
mm
1220
15
Fork width
mm
150
16
Fork thickness
mm
65
Performance
17
Max. driving speed
(with/without load)
km/h
21/23
18
Max. lifting speed
(with load)
mm/s
450
19
Max. traction
kn
54
20
Gradeability
(with/without load)
%
20/25
21
Tilting angles
(forward/backward)
°
6/12
22
Service weight
kg
9500
Engine
23
Engine model
China III
24
Power
kw
66
25
Rated speed
rpm
2200
26
Displacement
L
4.3
27
No. of cylinder
4
Wheel
28
Front overhang
mm
610
29
Wheel base
mm
2250
30
Front tread
mm
1470
31
Rear tread
mm
1700
32
Front tire
8.25-15-14
33
Rear tire
8.25-15.14

Product Features:
a. Powerful engine

Optional engine: CHAOCHAI 6102BG6 engine; ISUZU 6BG1-02 engine; EUROIII UK PERKINS 1104D-44TA engine

b. Hydraulic gear-box and hydraulic steering
c. Double front wheel for more stable and reliable
d. Fashionable design, high efficiency
e. Safe overhead guard
f. Warning light
g. Rear light for working in the dark

Improved Performance:
The truck has streamline appearance and it is beautiful.

Firstly air cleaner with safety filter and electronic pressure alarm not only ensures engine air intake amount however, also improve truck safety and reliability and durability.
Secondly, new type radiator improves cooling performance and truck reliability.
Thirdly, standard powered braking system offers quick-respond brake and effective brake; and high capacity bag type accumulator with good performance improves truck reliability.
Lastly, steering system offer easy operation, flexible and reliable steering.

Improved Ergonomics
Sealing technology and sound insulation technology reduce truck noise.
Man-machine engineering design improves operation comfort.
Wide view lifting system and wide-angle rear view mirror improves vision.
New type steering wheel with dual thread adjusting mechanism which has patent technology, which above all, makes it easy to be operated.
LCD meter with CAN bus is assembled on the truck and the operator can see engine real-time state through LCD meter.
New type engine hood lock mechanism improves hood opening flexibility and reliability.
Improved Safety Reliability
Half shaft sealing technology on drive axle end improves sealing reliability and reduces after-sale service cost.
Clearance buffering structure on lifting cylinder bottom makes goods lowering stable and improves working safety.
Steering axle with big steering angle is dust proof and water proof and reliable and has long maintenance interval.
