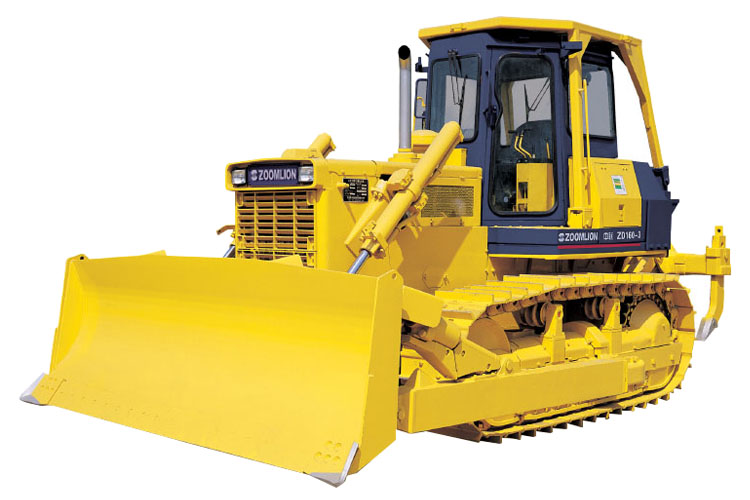

ZD160-3 Patblade


The ZD160-3 series bulldozer is powered by the WEICHAI WD10G178E25 turbocharged engine producing 131Kw. Offering excellent fuel consumption figures and a robust mechanical fuel system this engine is ideally suited for this class of dozer. Precise and reliable VDO gauges display the machine’s operational condition in real time. The machine features a user-friendly design, comfortable operation and a ruggedly attractive appearance. Equipped with a cooling system suited to high ambient temperatures and an air-conditioned ROPS/FOPS cab, this 18ton dozer is ideally suited for African conditions.

Categories: ,


Operating weight 18245kg
Engine Weichai WD10G178E25
Type 6 inline, 4 stroke, direct injection
Intake system Turbocharged
Rated power 131 kW (178Hp) @ 1850rpm
Peak torque 830 Nm @1100-1200rpm
Displacement 9.7L
Emission level Euro II
Transmission type Power shift, planetary gear
Travel speed forward 3.8/6.6/10.6 km/h
Travel speed reverse 4.9/8.5/13.6 km/h
Max. drawbar pull 152kN
Blade type Power Angle Tilt (PAT)
Blade capacity 4.6m³
Track shoe width 510 mm
Ground pressure 72.2kPa
Overall length including 3 shank ripper 6360mm
Width 3416mm
Overall height to top of ROPS 3200mm
